Lot 161:
Janesville Tool and Mfg. ILP-500 Manual Precision Arbor Press
Sold for: $70
Description

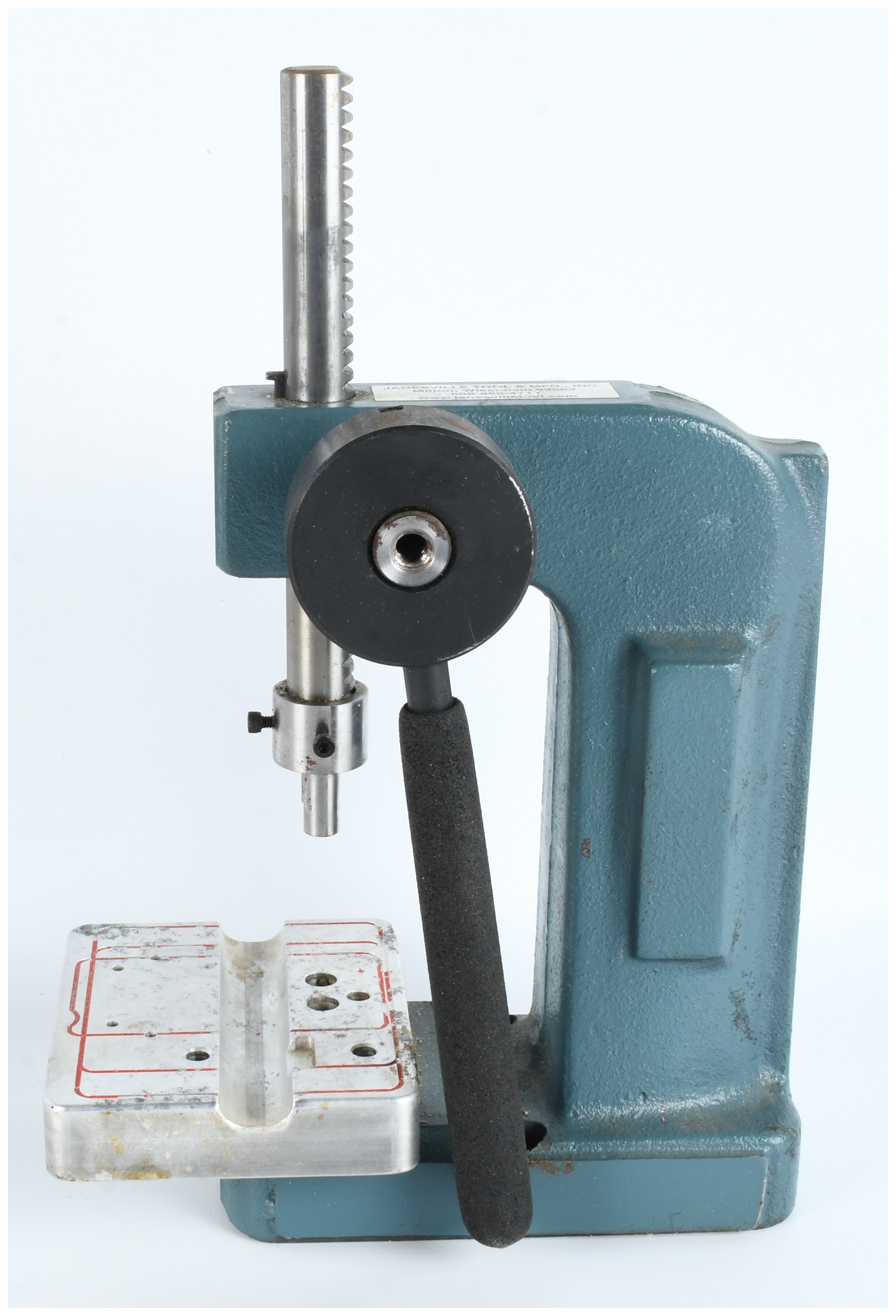

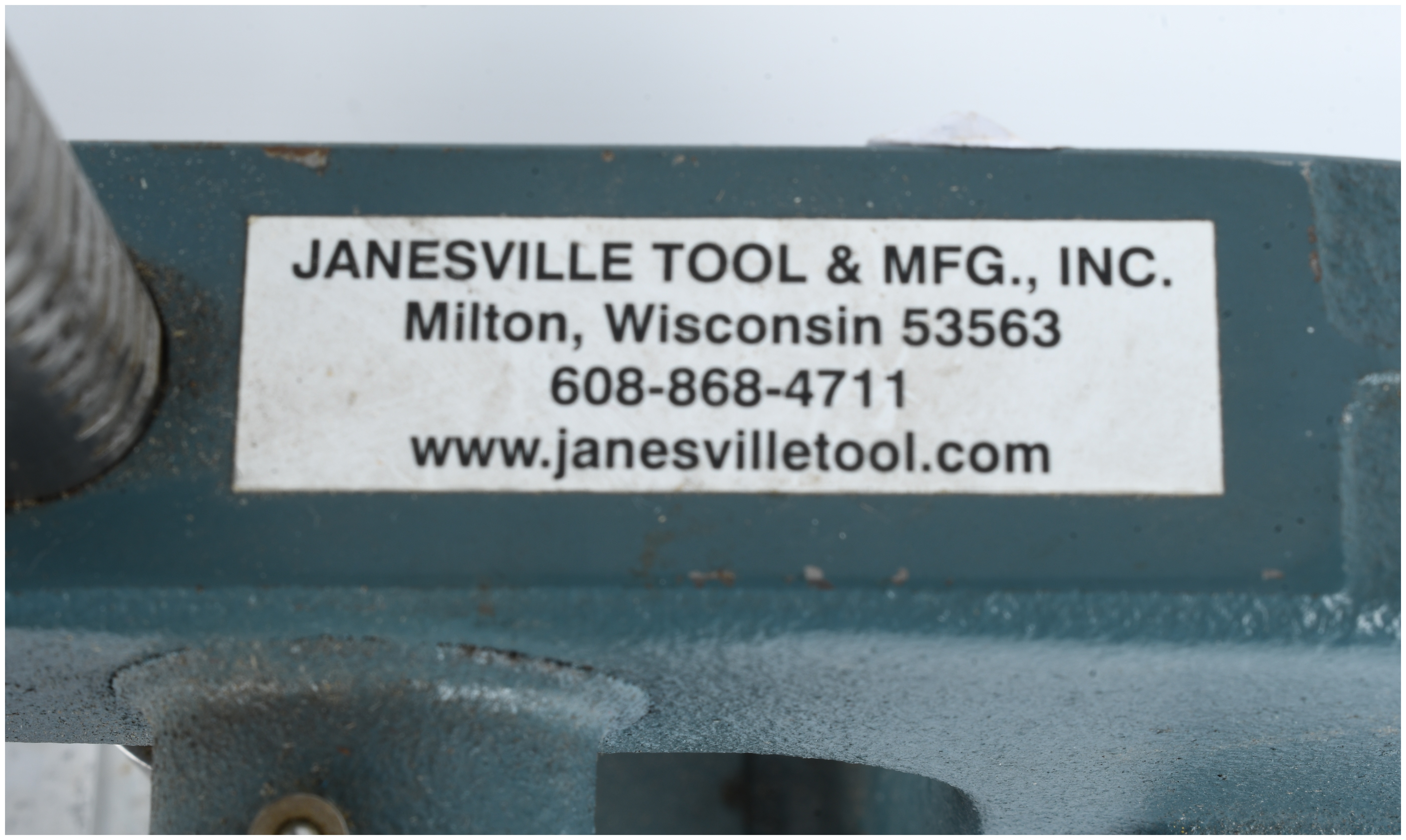

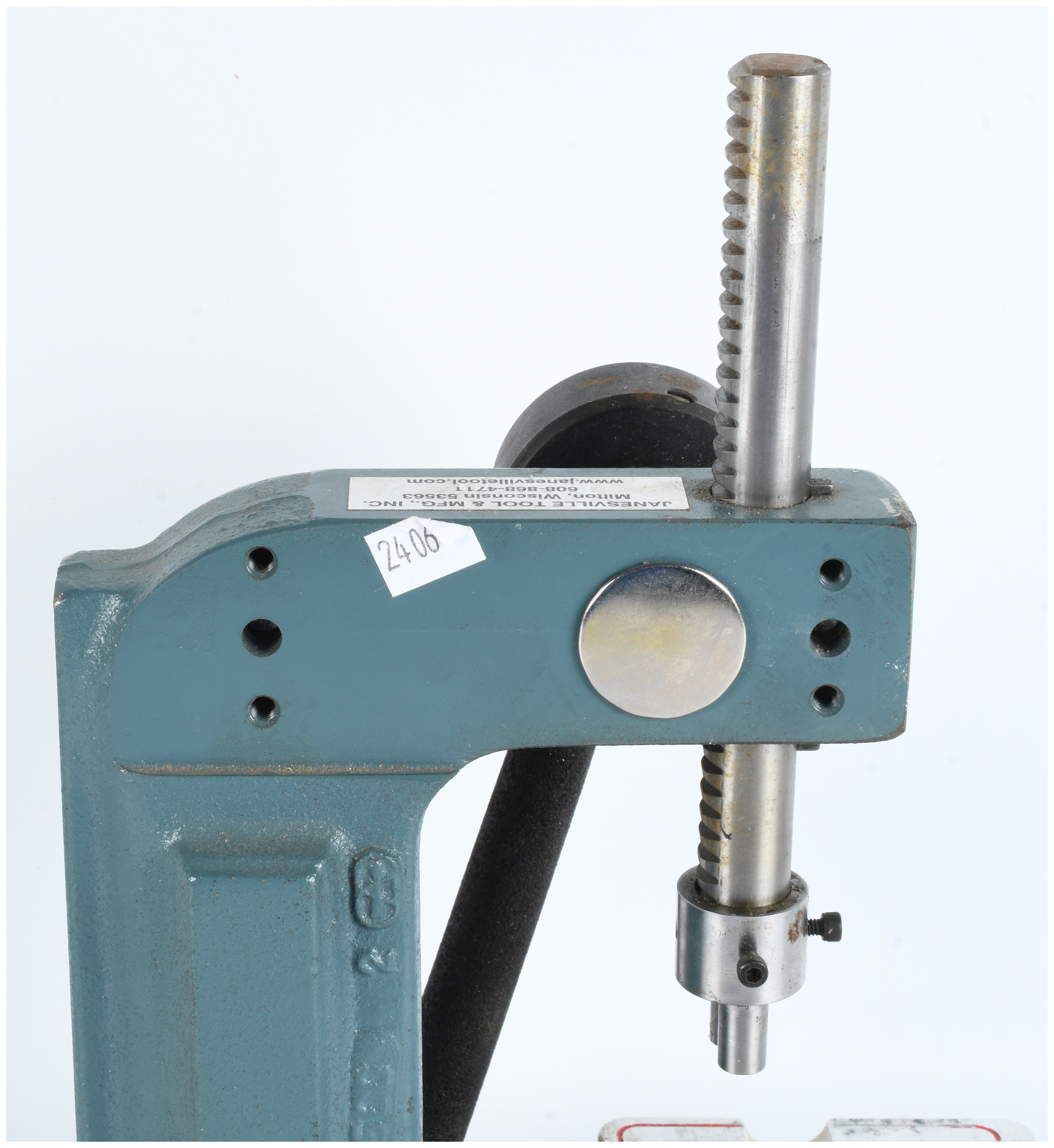

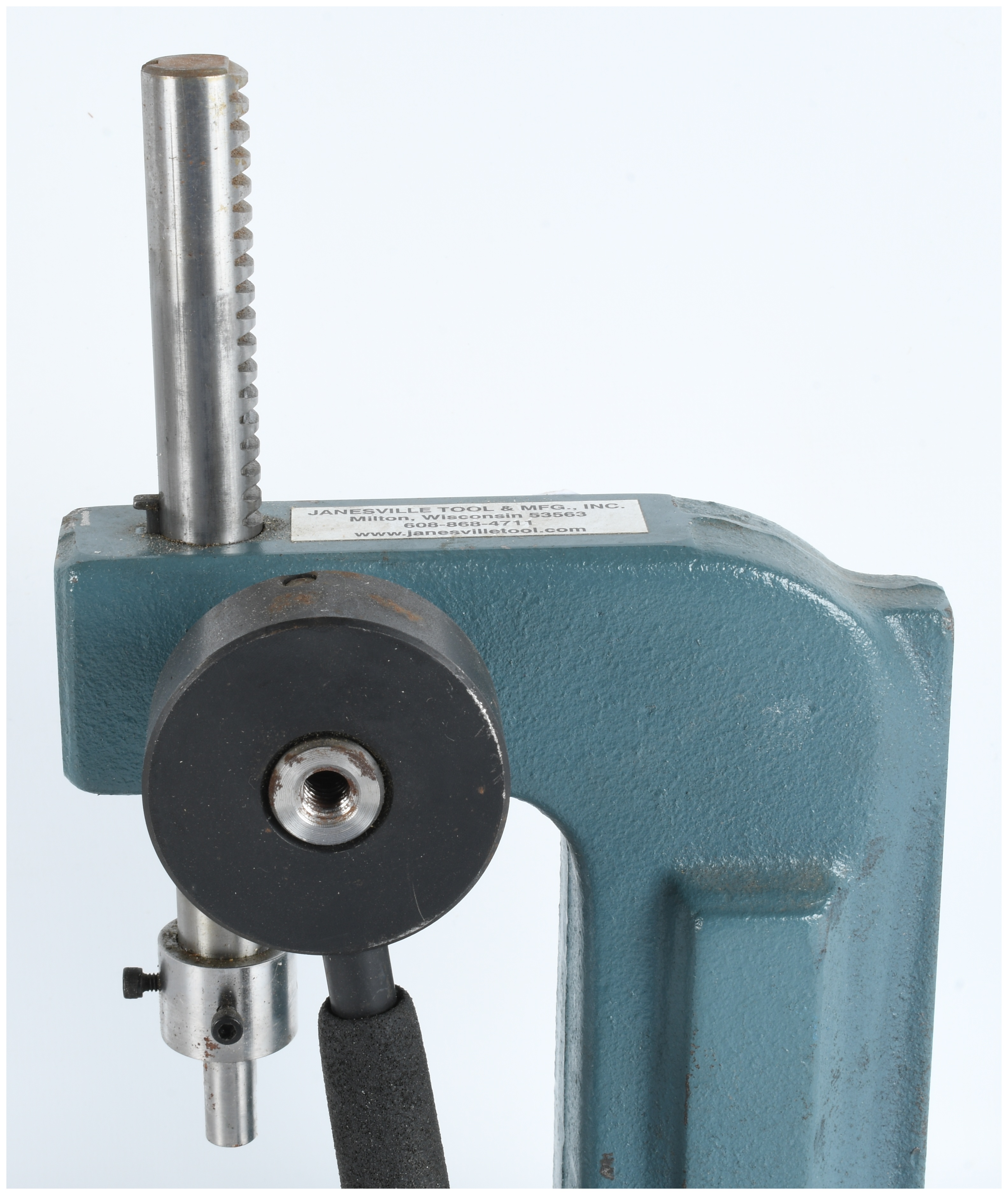

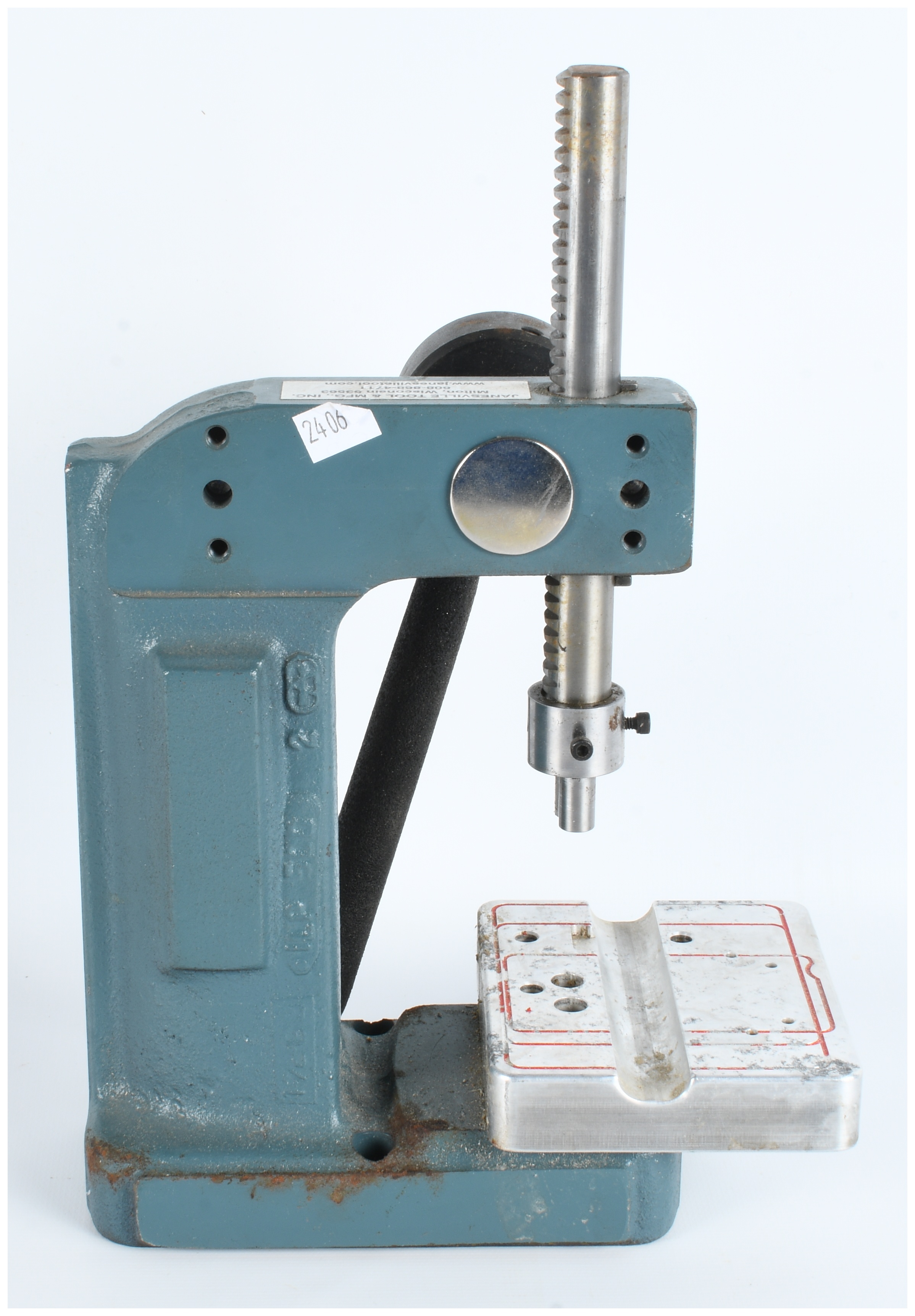

This manual precision arbor press is manufactured by Janesville Tool and Mfg., Inc. of Milton, Wisconsin. The unit is identified by a manufacturer label and the model designations ILP-500 and JT&M 2G embossed on the teal-colored cast iron frame. It features a lever-operated rack and pinion ram and a removable slotted aluminum work plate with multiple mounting holes and red layout markings. Based on manufacturer specifications for the ILP-500 model, the press has a 1/2 ton capacity, a 6-inch stroke, and a 1.75-inch throat depth. The frame includes pre-drilled mounting holes in the base for benchtop installation. The ram is equipped with a tool holder secured by set screws. The press is manually powered and designed for small-scale assembly, staking, or light-duty punching tasks.
Condition report:

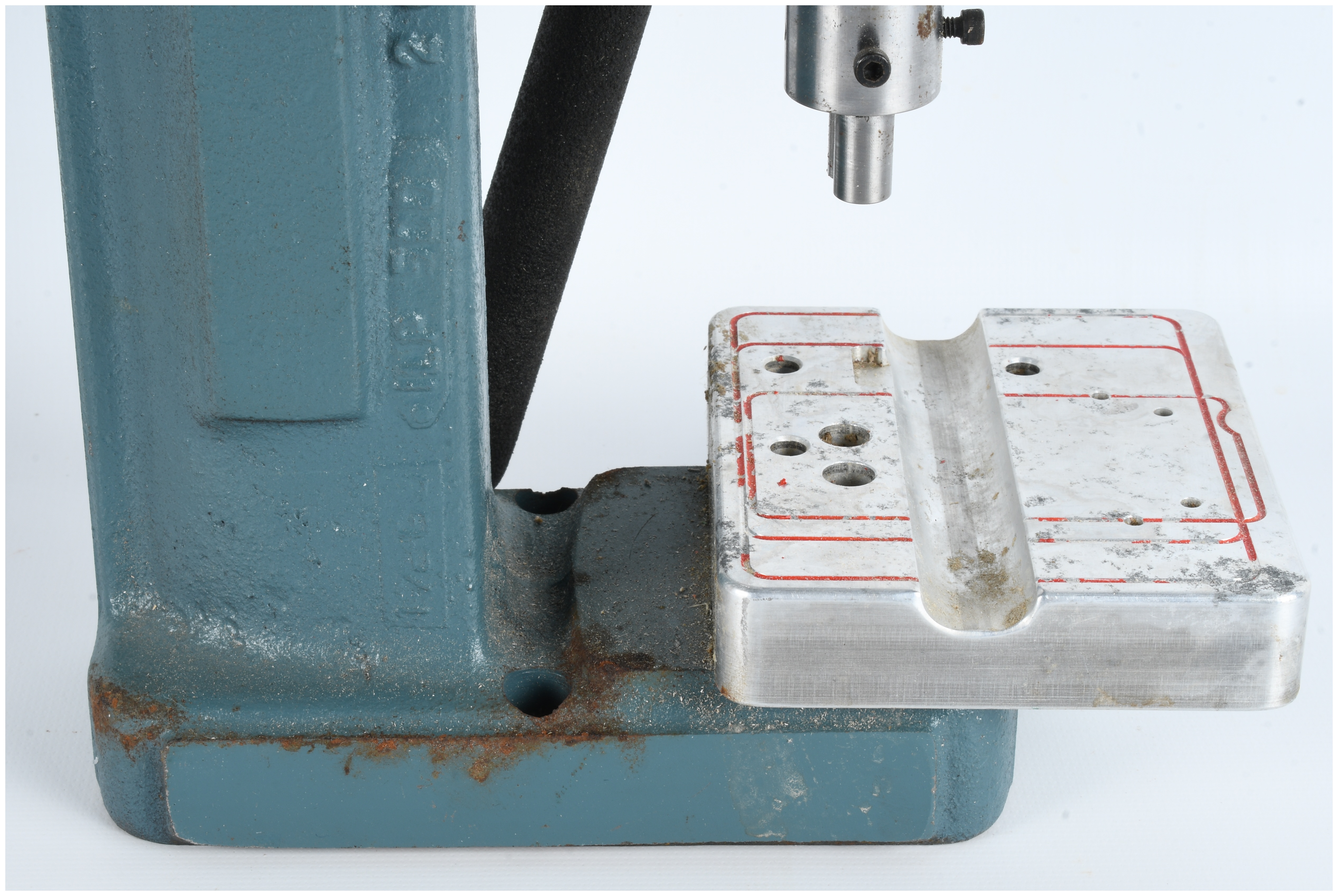

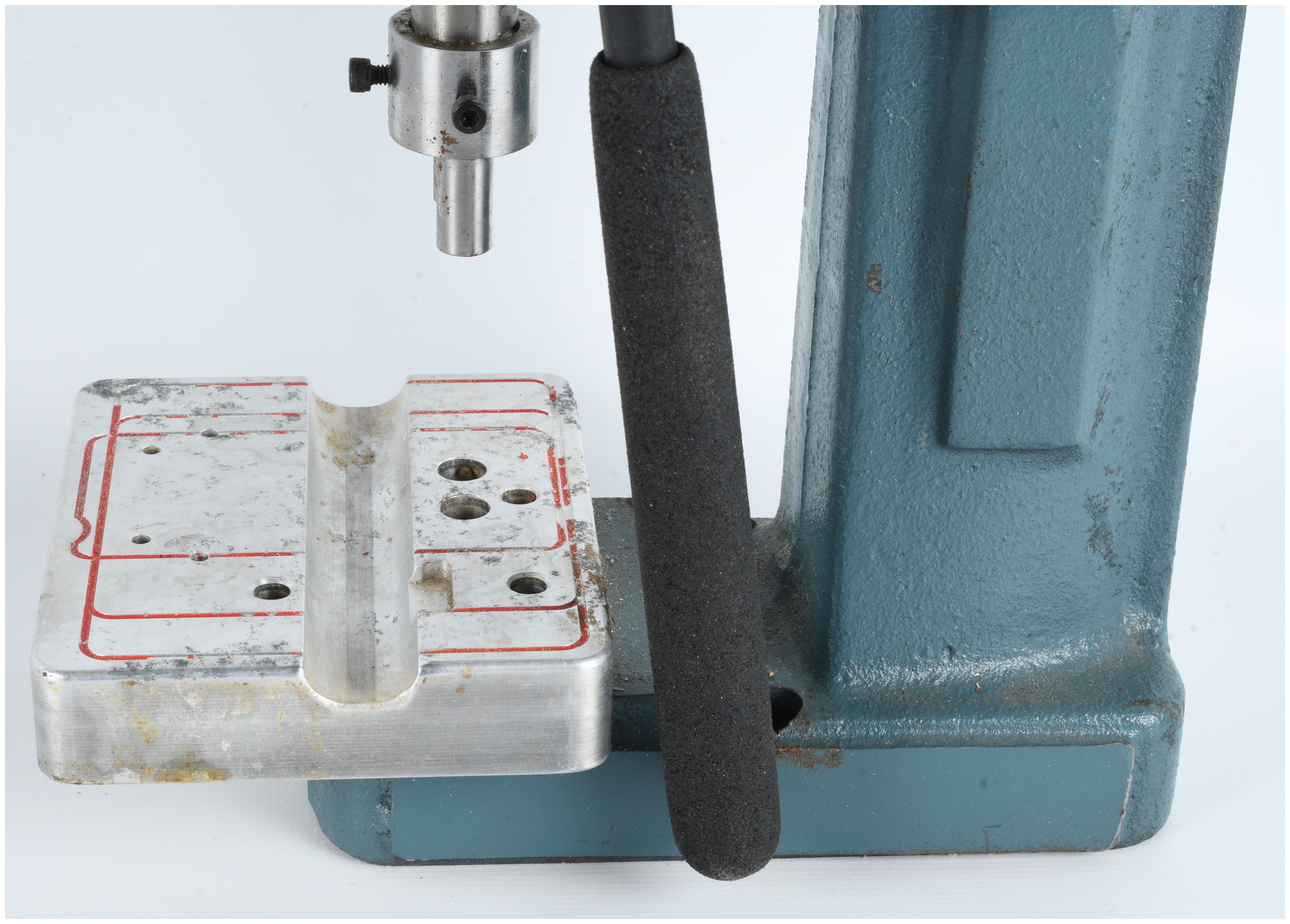

The equipment is in functional condition with visible signs of industrial use. Surface rust is present on the lower sections of the cast iron base. The aluminum work surface shows cosmetic wear, including scuffs, scratches, and staining. The teal paint on the frame exhibits minor chipping and scuffing. The mechanical rack and pinion movement appears operational.
